AC0090DC-30 - Orbit Electric 110/24V hose with Gas Pump Swivel Handle White Direct Connect – 30 ft

Central Vacuum dual voltage Crush-proof Direct Connect hose

The handle is the latest design in ergonomic "Gas Pump" with 360 degree swivel for tangle-free operation. The handle offers three-way switch to turn on / off the Vacuum and the Powerhead
Position one: All off,
Position Two: Suction control only
Position Three: Power-head and suction control

This hose body is an oversized 1 3/8" ID with a smooth bore interior for better airflow properties. The new 1 3/8" hose offers superior air-flow / performance than the older 1 1/4" hoses. The hose-to-grip connection has a full 360° swivel union that keeps you tangle free while moving about room to room, and the fingertip switch is 3 position giving you complete control over the remote suction unit and the powered brush.

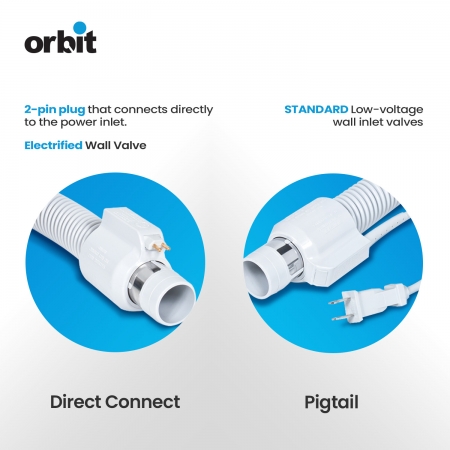

Direct Connect' configuration electrified hoses come with a two-pronged hose-end cuff. This hose is designed to ONLY work with ‘electrified vacuum wall valves'. ‘Direct Connect' hose will NOT work with a ‘standard' low-voltage wall inlet valve. The electrified vacuum wall valve has the low voltage connection as well as a built in ~110v plug. The two-pronged male plug on the hose connects into the ~110v vacuum wall inlet valve. The electrified vacuum wall inlet valve has markings ‘7A, 125v, 60Hz'

Physical Dimension: Length: 30 foot (9 meter)

Configuration: Direct Connect

Performance: Smooth interior for high air-flow

Features:360 degree swivel handle Light-weight Crush-proof

Construction: Current carrying (~110 -120v ) Electric hose

Material: High impact durable polypropylene.

Specifications: 1.5 inch Hose end Cuff that fits Electridied Wall valves

Color: White
